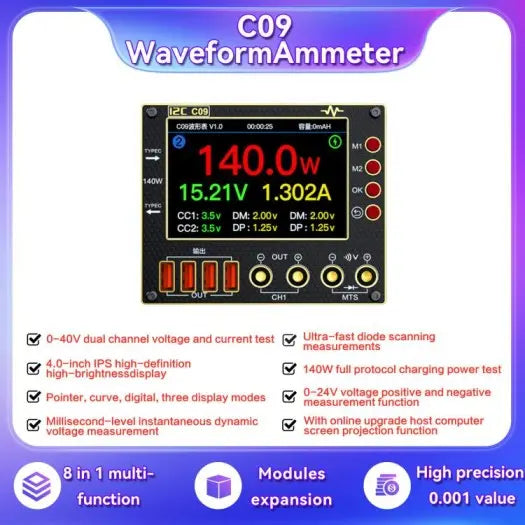

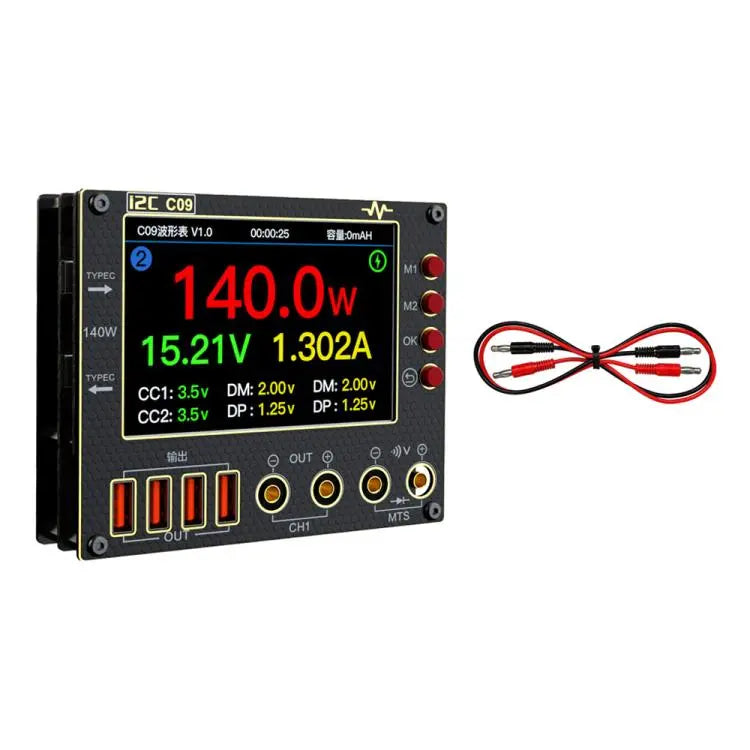

I2C C09 Digital Waveform Voltage Meter – Model Host for Precision Testing

The I2C C09 Digital Waveform Voltage Meter – Model Host is a specialized diagnostic tool designed for technicians, engineers, and professionals working in the field of mobile phone motherboard repair, IC testing, and PCB diagnostics. Unlike traditional multimeters that only provide basic voltage or current readings, this advanced tool allows you to analyze digital waveforms in real-time, making it one of the most reliable instruments for precision electronic testing.

If you’re involved in mobile repairing or chip-level work, accuracy and clarity in testing signals are crucial. Even the slightest error in reading voltage can lead to misdiagnosis, wasted time, or damage to sensitive components. The I2C C09 eliminates such risks by offering accurate digital voltage measurement along with waveform visualization, ensuring that professionals can pinpoint issues quickly and with confidence.

Premium Design and Build Quality

The I2C C09 is engineered with high-grade electronic components and designed to endure regular use in repair labs, training institutes, and professional workshops. Its compact size and ergonomic design make it easy to handle, while the strong build ensures durability in demanding work environments.

The display is designed to present clear and detailed readings, so users can view real-time voltage levels and waveform behaviors without confusion. The device is lightweight and portable, which makes it an ideal companion for technicians who work across different repair stations.

Advanced Features of I2C C09 Digital Waveform Voltage Meter

1.
2. High-Precision Voltage Measurement
   Accurately measures voltage across circuits, ICs, and motherboards. This precision ensures correct diagnostics, especially in micro-voltage testing scenarios.

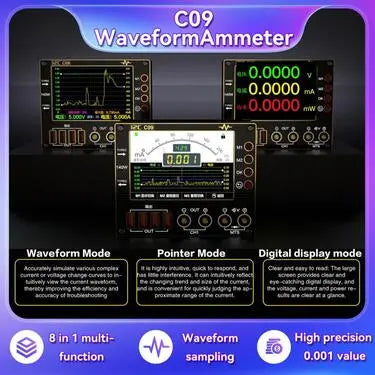

3. Digital Waveform Analysis
   The unique feature of the I2C C09 is its ability to display waveform patterns. Unlike standard meters, it allows technicians to observe how signals behave, helping in detecting irregularities that could affect a circuit’s performance.
4. Real-Time Signal Monitoring
   Provides live updates of waveform fluctuations, making it possible to track performance under different operating conditions.
5. User-Friendly Interface
   Equipped with an intuitive interface for easy operation. Both beginners and experienced repair engineers can use it without steep learning curves.

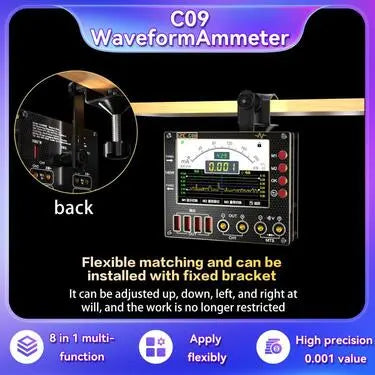

6. Compact & Portable
   Designed for mobility, the device can be easily carried between workstations or packed in repair kits for field service.
7. Durable Housing
   Built with strong materials to resist daily wear and tear in busy repair shops.
8. Versatility in Usage
   Suitable for multiple tasks including IC chip verification, PCB repair, digital circuit analysis, and advanced testing of smartphones.

Applications of the I2C C09

The I2C C09 is not a general-purpose meter—it is a specialized instrument tailored for chip-level diagnostics. Its applications include:

•
• Motherboard Repair: Quickly detect faults by monitoring voltage levels and waveforms on logic boards.
• IC Testing: Verify the performance of integrated circuits by checking their waveform patterns.
• BGA Rework & Reballing: Confirm the stability of reinstalled ICs after soldering.
• Micro-Voltage Monitoring: Perfect for delicate circuits where even tiny fluctuations matter.
• Training Purposes: Ideal for students and new technicians learning about digital signals and circuit behaviors.

Advantages for Technicians

•
• Faster Diagnosis: Real-time waveform visualization speeds up the fault-detection process.
• Improved Accuracy: Provides a deeper level of analysis compared to ordinary multimeters.
• Enhanced Success Rate: By ensuring precise readings, it reduces the chances of misdiagnosis and failed repairs.
• Professional Reliability: Using advanced diagnostic tools builds customer trust and strengthens workshop credibility.
• Long-Term Value: Durable build quality ensures it remains a reliable tool in your setup for years.

Technical Importance

Mobile phones and modern PCBs are equipped with highly sensitive chips and micro-components. A regular multimeter often falls short in analyzing these parts because it only gives basic readings without visual feedback. The I2C C09 bridges this gap by offering digital waveform display, which allows you to see beyond just numbers and truly understand how signals are moving across the circuit.

This level of testing is essential for identifying issues like:

•
• Voltage drops in ICs
• Signal noise in circuits
• Power stability across motherboard sections
• Faulty solder joints after rework

By providing this detailed analysis, the I2C C09 ensures higher precision in diagnostics and minimizes guesswork in the repair process.

How It Enhances Your Repair Station

Adding the I2C C09 Digital Waveform Voltage Meter to your workstation is an upgrade that brings professionalism and accuracy. It works seamlessly alongside other tools such as:

•
• Digital Multimeters – For quick standard voltage checks.
• Soldering & Rework Stations – To ensure proper connections after soldering.
• Microscopes – To visually inspect PCB areas while confirming results with waveform analysis.
• Power Supply Units – To stabilize and test motherboard performance.

When integrated with these tools, the I2C C09 makes your repair setup complete and efficient.
