Mechanic Iscout Infrared Thermal Imaging Camera for PCB Motherboard Detection

Features:

• Mechanic iScout cellphone version thermal imaging analyzer, professional motherboard testing instruments make your maintenance faster and more accurate

• Support one-key leakage detection, the minimum can detect 6mA current leakage.

• Support different areas of the image color change contrast fine check

• Supports comparison between good and bad boards to locate faulty circuit boards quickly

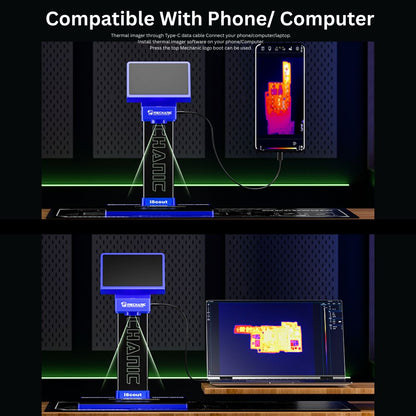

• Compatible with phone/computer, thermal imager through Type-C data cable, connect your phone/computer/laptop, install thermal imager software on your phone/computer can be used

• 52000 points effective temperature measurement, 192x256 full frame infrared detection

• 3D thermal field distribution, display of temperature changes, a dedicated mode for product evaluation, and heat distribution analysis

• The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed

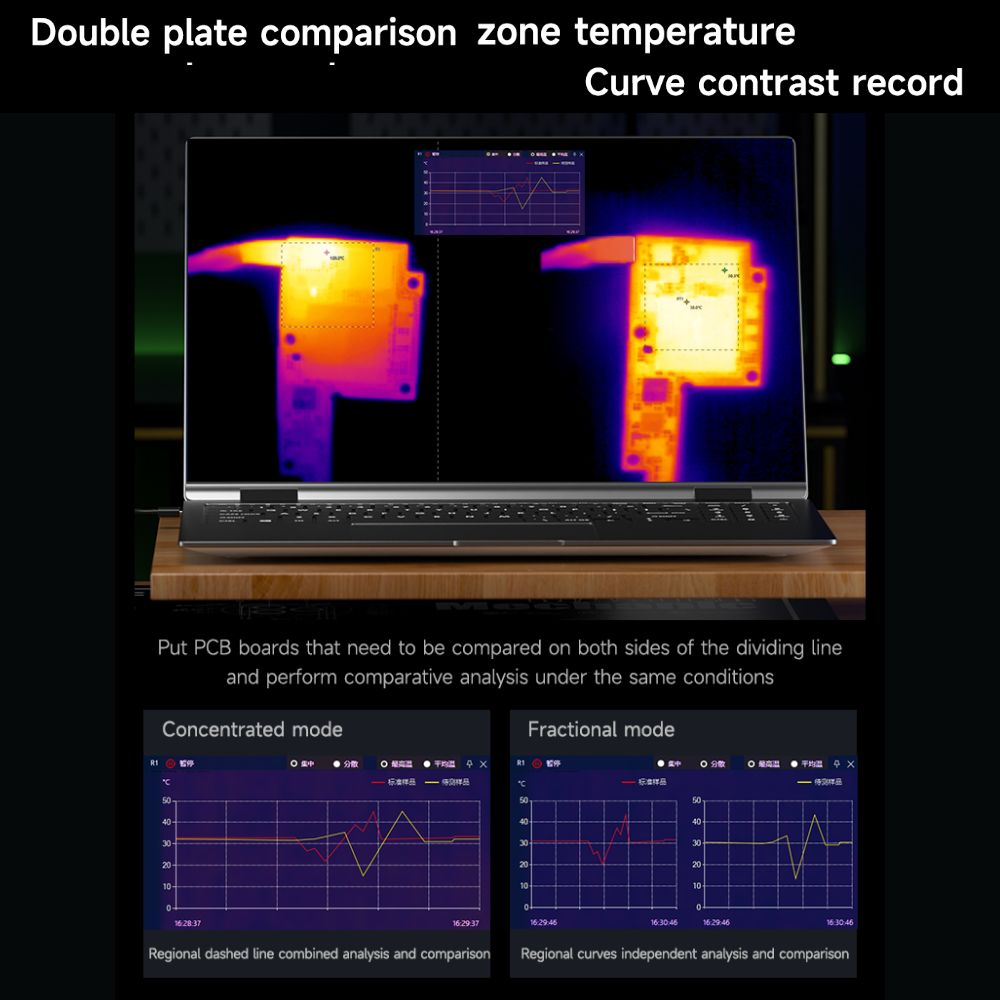

• Double plate comparison zone temperature, curve contrast record, for thermal distribution design optimization, fault differentiation comparison verification, regional temperature curve comparison record, superposition comparison, etc

• Comfortable angle up and down, more practical design, quickly adjust the direction of the lens, loosen the sliding screw of the support

• It can realize up and down, go up and down, and select the appropriate detection angle. the working distance is 100-150mm, and the extended lens can be observed at 30mm

Package includes:

• 1 x Thermal Imaging Camera

• 2 x Type-C Cable

• 1 x Macro Lens
