YCS TNZ Microscope Infrared Thermal Imaging Camera for Motherboard Rapid Detected

Features:

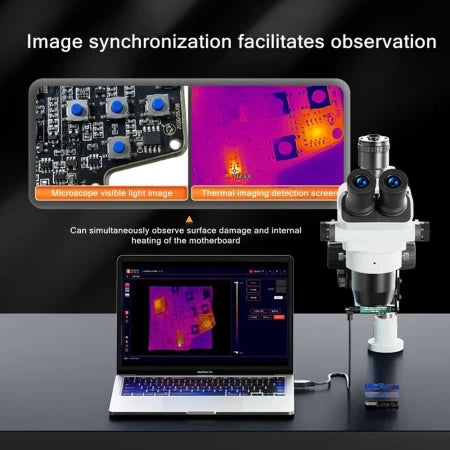

• Image synchronization facilitates observation, and can simultaneously observe surface damage and internal heating of the motherboard

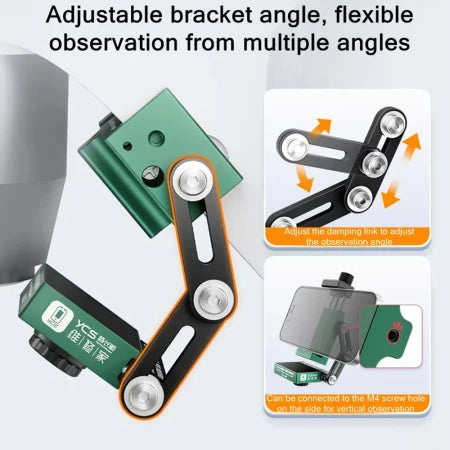

• Adjustable bracket angle, flexible observation from multiple angles, adjust the damping link to adjust the observation angle, can be connected to the M4 screw hole on the side for vertical observation

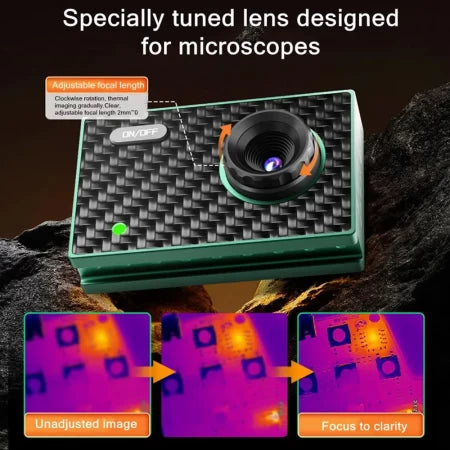

• Specially tuned lens designed for microscopes, adjustable focal length, clockwise rotation, thermal imaging gradually, clear, adjustable focal length 2mm~∞

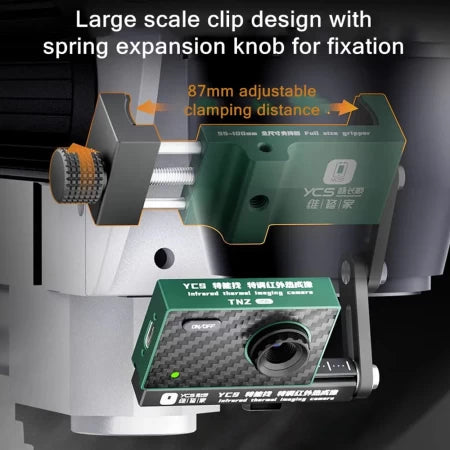

• Large-scale clip design with spring expansion knob for fixation, 87mm adjustable clamping distance

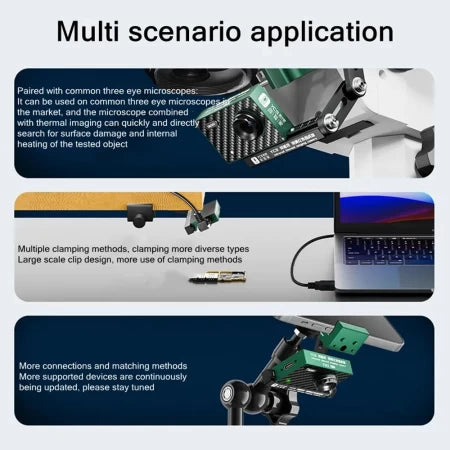

• It can be used on common three-eye microscopes on the market, and the microscope combined with thermal imaging can quickly and directly search for surface damage and internal heating of the tested object

• Multiple clamping methods, clamping more diverse types, large scale clip design, more use of clamping methods

• More connection-matching methods, and more supported devices are continuously being updated, please stay tuned

Specification:

• Brand: YCS

• Name: YCS TNZ Infrared Thermal Imaging

• Resolution: 49152 effective temperature measurement points

• Focusing distance: 2mm~∞

• Temperature measurement range: -20℃~120℃

• Lens type: Zoom lens

• Type-C cable length: 1500mm

• Input voltage: 5V

• Interface type: Type-C

• Product weight: 142.2g

Package includes:

• 1 x Thermal Imaging Camera
